Bromic Heating  |  SKU: BH3130011-2

Bromic Wireless Dimmer Controller for Electric Heaters

$1,024.00

Need Assistance?

Email us at support@vivaalfresco.com or chat with one of our trusted experts today.

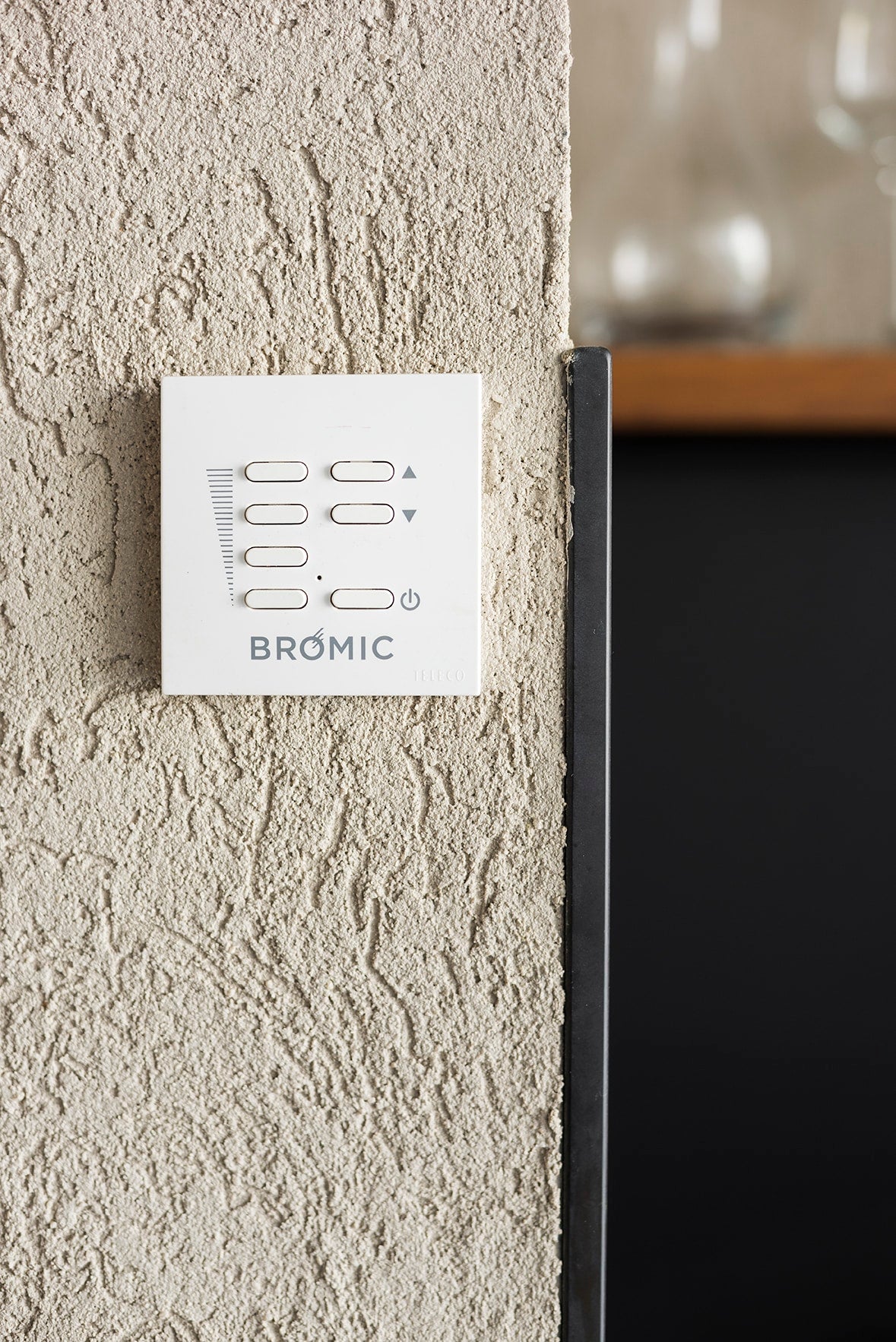

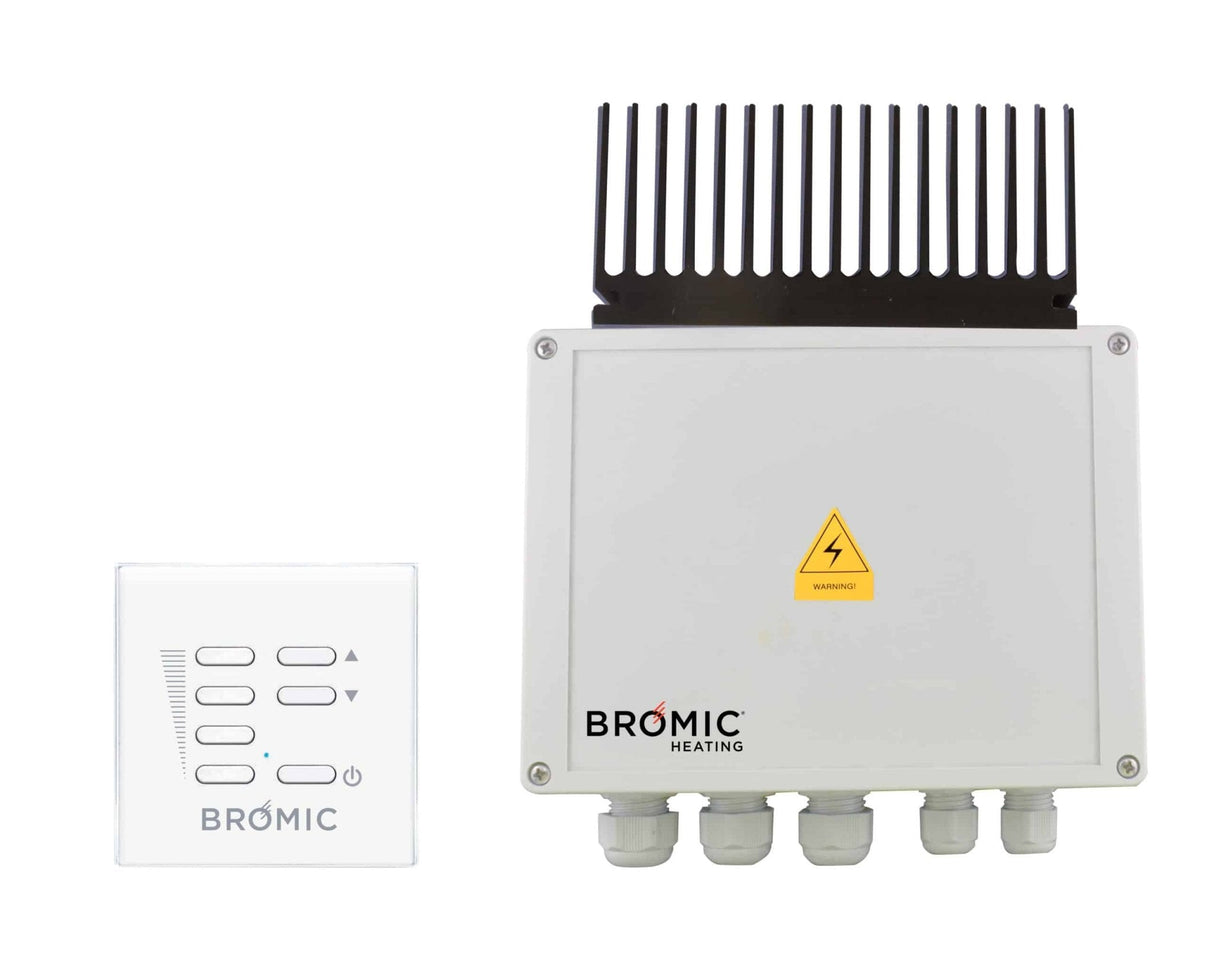

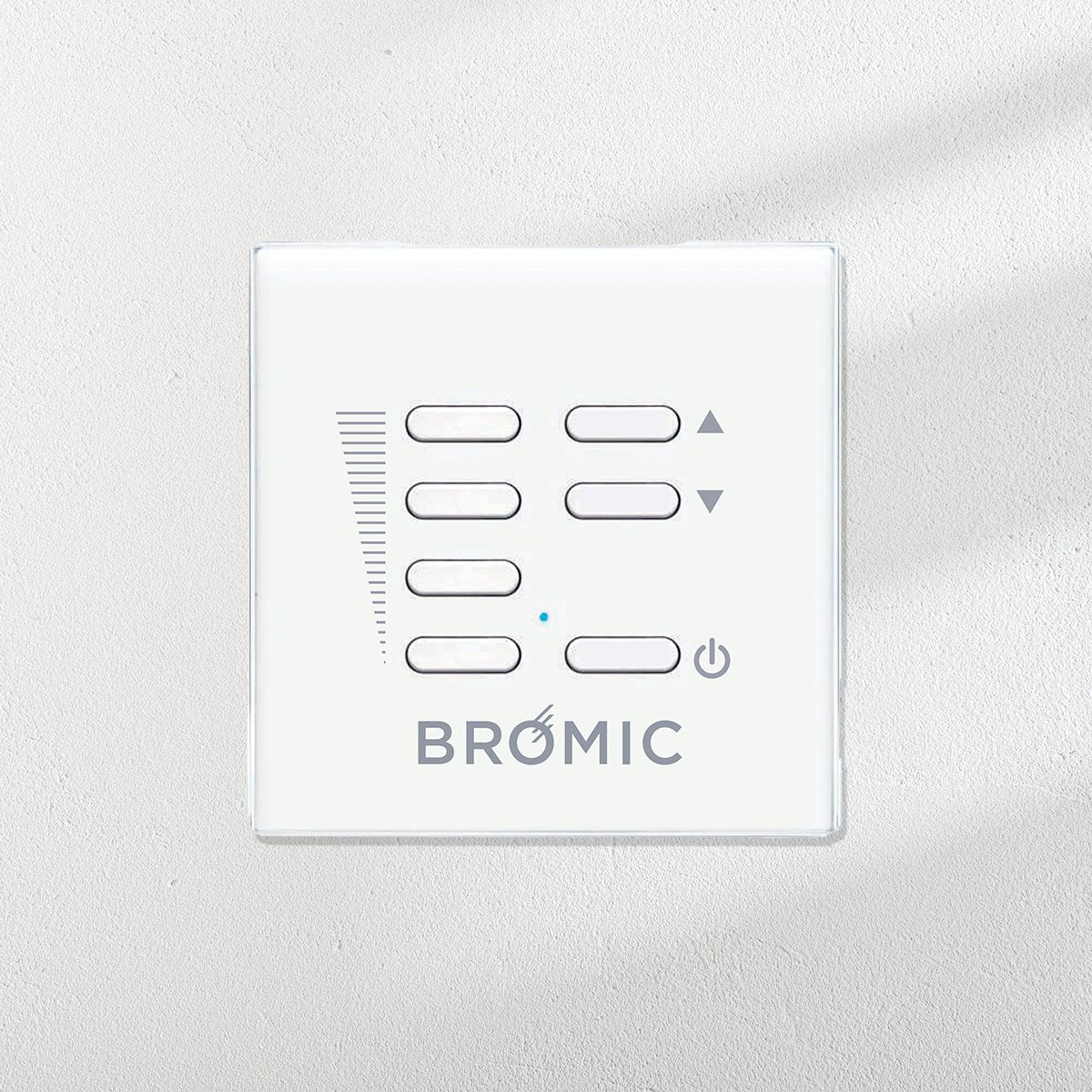

Move beyond the base-model with our Bromic Heating Wireless Dimmer Controller.  With our Dimmer Control and wireless 7-Channel remote, you’ll be able to precisely adjust the output of your electric heaters in 1% increments, or quickly jump by 25% increments for perfect comfort and complete flexibility from up to 100 FT away.

The remote can be kept separate or easily mounted with the included double-sided adhesive or screws. Each dimmer controls one 6800W heater at 240VAC or two 3400W heaters at 240VAC.

Please reference the specification guide below to help you select the correct solution for your needs.

PART NUMBER

BH3130011-2

POWER SUPPLY

208/240/277V 50/60Hz (29A.max)

MAX OUTPUT POWER CHANNEL

6800W @ 240VAC (28.5A)

6800W @ 277VAC (25A)

6000W @ 208VAC (29A)

FUSE PROTECTION

32A (FWC high speed)

RECEPTION FREQUENCY

916MHz

OPERATING TEMPERATURE RANGE

-4 to 86°F

DIMENSIONS

9” x 7.9” x 2.95”

PROTECTION CLASS

IP54

APPROVAL CERTIFICATION

UL & cUL E470263

What products are compatible with the Dimmer Controller?

The Dimmer Controller can be used with our Tungsten Electric and our Platinum Electric Collections. For the Eclipse Collection, please refer to our Eclipse Dimmer Controller.

Can I control two heaters with the same Dimmer Remote?

You can control two heaters if they’re not exceeding 6800W (so, two 3400 Platinum Electric or two 3000W Tungsten Electric heaters). Please also note, that if two heaters are connected to a single dimmer controller, they cannot be controlled independently. To control individual heaters independently, you will need to install two separate controllers.
